3.20. Import windows definable from a previous version

For those using a previous version of the viewer Draw 3 can import defined sets of graphs (called in the previous version of "Definable windows"). If you want to take advantage of this opportunity, choose Tools and Import Definable windows from an earlier version or use the keyboard shortcut keys Ctrl + Shift + I. A window opens in which you select a file from a saved configuration - is usually stored in your home directory under the name beginning with ekrn, then the name of the configuration (eg for Bytów Bytom) and extension def:

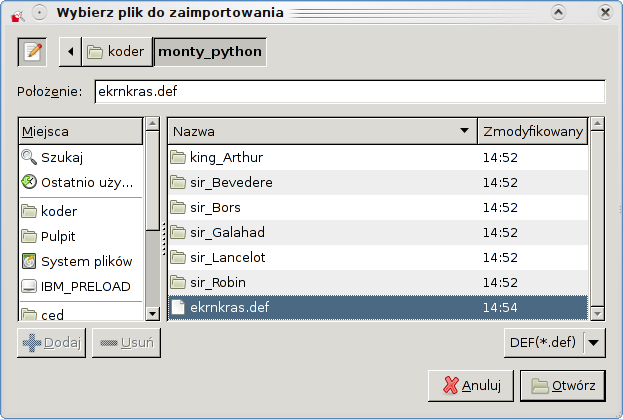

Rysunek 3-31. Import definable windows
